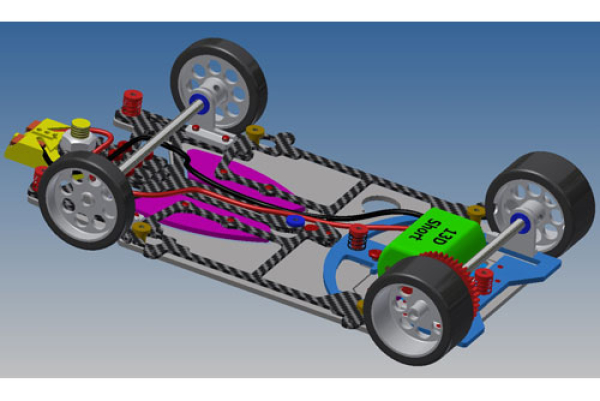

SF Chassis 7TY GT Short 13D

Shimpment: chassis pre-assembled with bodyholders
#QAS  Quickfit Attachment System
(without axle, bearing, guide, guide nut, motor, cable, rims, tires)

Motor bracket for 13D-motors
Wheelbase: 97mm - 111mm
Width of chassisplate: 70mm
Width axle mounting front: 57mm
Width axle mounting rear: 51mm
Track width front min: 79,2mm (rim 21x3mm,width of rim total 10mm) e.g.: Scaleauto SC2709P
Track width rear min: 82,2mm (rim 21x13mm, with of rim total 15mm) e.g.: Scaleauto SC2421P
Weight of chassis: ca. 96gr (without axle, bearing, guide, etc....)
Weight of Chassis total without bodyholder/weight: ca. 135gr (with axle, bearing, guide, cable, motor 13D, etc.....)
Weight of Chassis total: ca. 147gr (with axle, bearing, guide, cable, motor 13D, etc.....)
